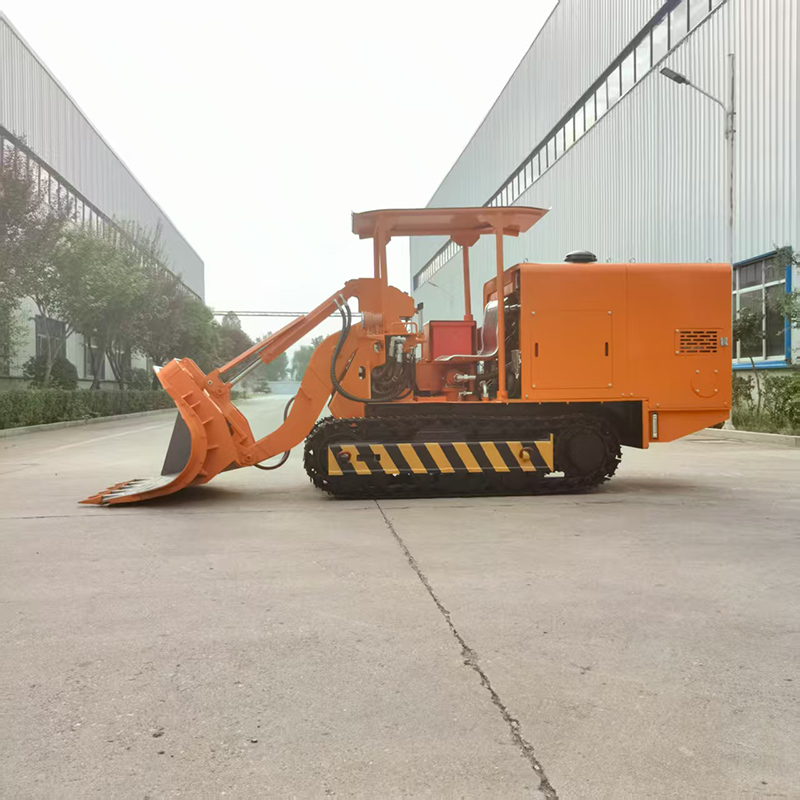

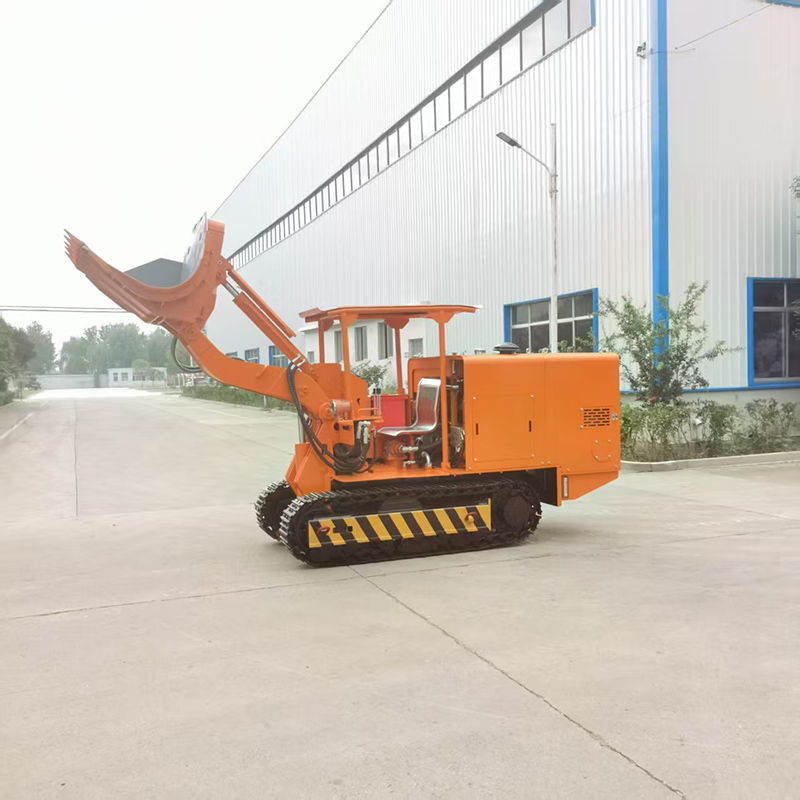

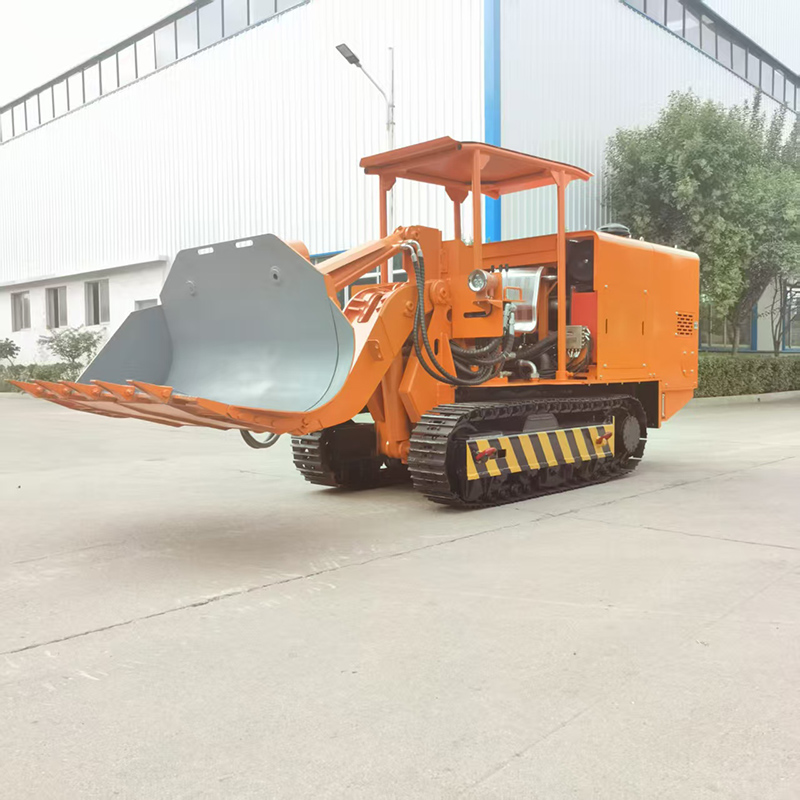

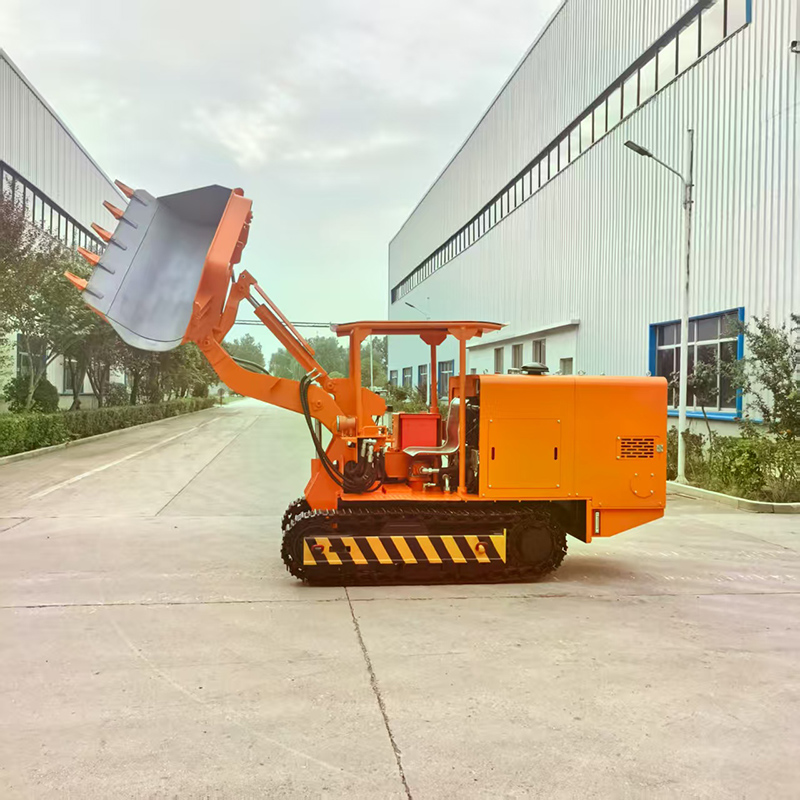

Efficient Side Unloading Rock Loader
1.Diesel-powered, equipped with a walking mechanism, highly maneuverable and flexible.
2.Suitable for long-distance slag removal operations and large-scale construction scenarios.
3.The ZCN series offers a variety of standard models for selection.
4.The scope of the work is not restricted, significantly reducing the time for auxiliary tasks.
Product Details
The power system of the Efficient Side Unloading Rock Loader is equipped with a high-power diesel engine to meet the requirements for underground explosion prevention.

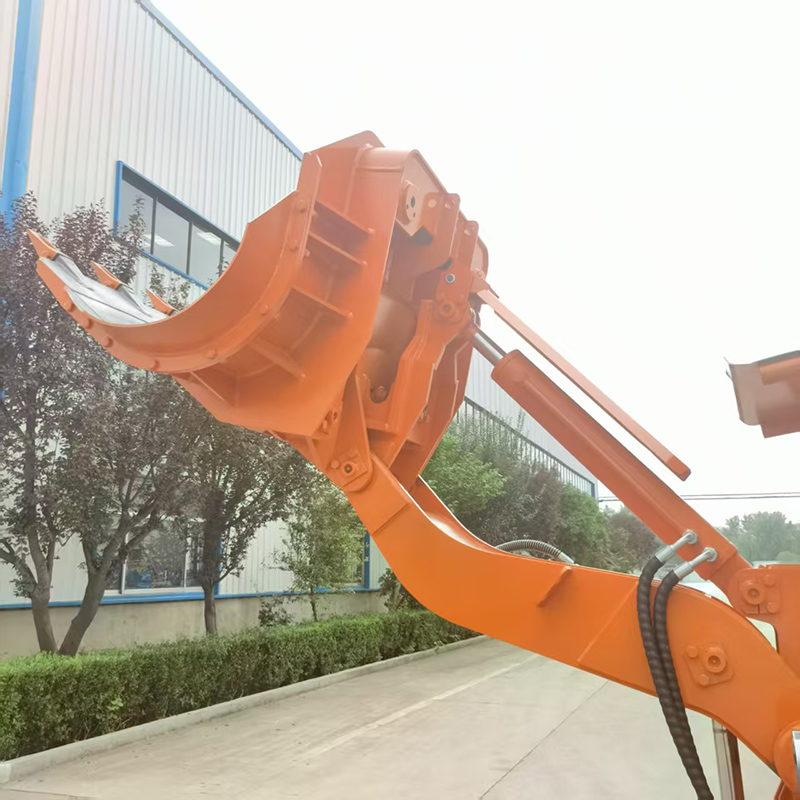

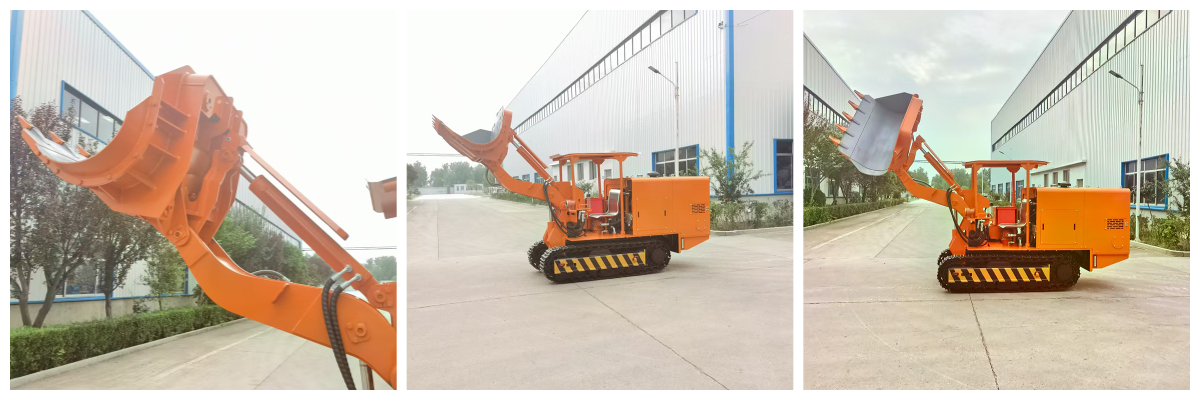

The hydraulic system drives the bucket to achieve lateral discharge, with a discharge angle of up to 55°, which is more suitable for narrow space operations than the traditional front discharge method.
Trackless self-propelled power，It uses a diesel engine as the power source and has its own tracks,quick and convenient working location, greatly reducing auxiliary work time.
Wide operating range，Not limited by cable length or air duct distance, it can easily access remote, dispersed or pioneering working surfaces for operations, and is especially suitable for long-distance and large-scale slag removal tasks.
Product Functions

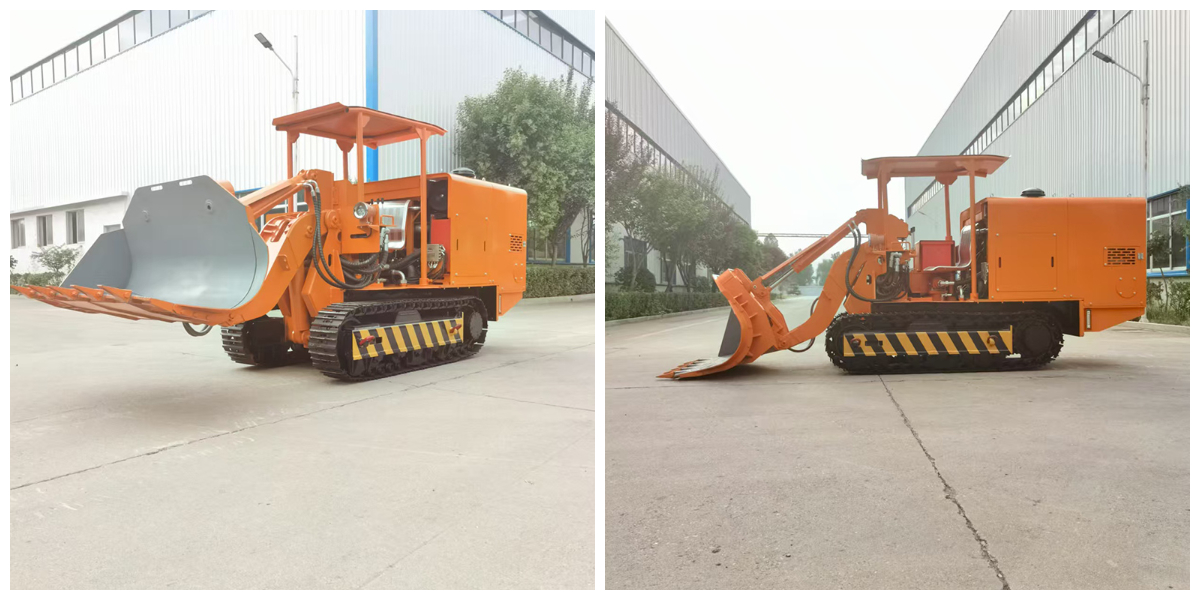

⭐It has a large bucket capacity and strong insertion force, has high productivity, can quickly complete loading tasks, and significantly reduces labor intensity.
⭐It adopts a crawler-type traveling mechanism, which has a small grounding specific pressure and strong climbing ability, and can adapt to underground uneven road surfaces and slope operations. Its structure is relatively compact and its turning radius is small, making it especially suitable for construction in narrow tunnels.
⭐The bucket can be flipped to one side for unloading. This unloading method reduces the equipment's requirements for the unloading position, eliminates the need to turn around, reduces the waiting time of transport vehicles, and improves overall operating efficiency.
Parameters
Product Model | ZCN60R | ZCN80R | ZCN100R | ZCN120R | ZCN150R | ZCN180R |
Overall Dimensions (L*W*H mm) | 4500*1510*2060 | 4585*1636*2088 | 4855*1636*2150 | 5200*1820*2150 | 5250*2120*2150 | 5380*2420*2200 |
Bucket Capacity (m³) | 0.6 | 0.8 | 1 | 1.2 | 1.5 | 1.8 |
Bucket Width (mm) | 1510 | 1636 | 1636 | 1820 | 2120 | 2420 |
Max. Dumping Height (mm) | 1700 | 1900 | 1900 | 1900 | 2000 | 2000 |
Max. Dumping Angle (°) | 55 | 55 | 55 | 55 | 55 | 55 |
Max. Traction Force (KN) | 25 | 40 | 40 | 50 | 50 | 50 |
Rated Traction Force (KN) | 20 | 30 | 30 | 45 | 45 | 45 |
Max. Travel Speed (m/min) | 30 | 30 | 30 | 30 | 30 | 30 |
Min. Ground Clearance (mm) | 180 | 180 | 200 | 200 | 200 | 200 |
Max. Undercutting Depth (mm) | 450 | 500 | 500 | 500 | 500 | 500 |
Gradeability (°) | ±16° | ±16° | ±16° | ±16° | ±16° | ±16° |
Track Shoe Width (mm) | 260 | 300 | 300 | 300 | 300 | 300 |
Track Ground Pressure (MPa) | 0.09 | 0.09 | 0.1 | 0.1 | 0.1 | 0.1 |
Center of Gravity Position (mm) | Xg=694 | Xg=763 | Xg=788 | Xg=815 | Xg=842 | Xg=850 |
Yg=30 | Yg=34 | Yg=35 | Yg=44 | Yg=85 | Yg=100 | |
Noise (dBA) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
Diesel Engine - Installed Power (kW) | 62 | |||||
Starting Method | Electric Start | |||||
Protection Type | Electric Protection | |||||
Engine Speed | 2200rpm | |||||
Travel Working Pressure (MPa) | 20 | 20 | 23 | 23 | 23 | 23 |
System Working Pressure (MPa) | 18 | 18 | 20 | 20 | 20 | 20 |
Operating Weight (without fuel) (kg) | 5200 | 6500 | 7500 | 7900 | 8200 | 9000 |
Goods arrival
⭕The Efficient Side Unloading Rock Loader is one of our company's best-selling products. This equipment has been in use in the mining areas of Jinchua Group, Shanxi Changping Coal Industry Co., Ltd., Shanxi Jiaotong Coal Group and other companies for nearly 20 years. This product has consistently ranked among the top three in our company's product sales. It is a rare underground mining equipment that is indispensable. The working efficiency of the single machine is far superior to that of manual operation.
⭕Over the past 20 years, it has been verified by the market and has been continuously purchased by leading mining groups, fully demonstrating its reliable quality and high cost-effectiveness. As the original manufacturer, we provide customized configurations, rapid delivery, and full lifecycle technical support. It is the preferred equipment for global mining customers to increase production capacity and reduce costs.
Work efficiency
The Efficient Side Unloading Rock Loader has a much higher overall efficiency than manual labor and traditional bucket-wheel rock loaders. It is a highly efficient mainstream equipment in scenarios such as underground tunnel excavation and waste removal.
1.Strong loading capacity
●Large hopper capacity + strong insertion force, capable of quickly loading loose coal gangue and large chunks of hard rock. The single-cycle efficiency is 5-10 times higher than manual lifting.
●Full-section slag loading without dead corners, no need for manual bottom cleaning and supplementary chiseling, reducing ineffective working hours.
2.Compared with traditional equipment
●Compared with bucket rock loading machines: Efficiency increased by 30% - 50%, cycle time shorter, and slag removal cleaner.
●Compared with manual labor: Efficiency increased by more than 10 times, significantly reducing labor intensity and safety risks.
●The medium-sized section horizontal and inclined tunnels are excavated, and are integrated with continuous transportation. The production rate can reach 80–120 m³/h.
3.High efficiency in continuous operation
●It can be seamlessly integrated with scraper conveyors, belt conveyors and mine cars, forming a continuous slag discharge line, avoiding intermittent waiting.
●Multi-purpose: It can also serve as a support platform and for short-distance material transportation, reducing equipment switching and manual assistance.
